Compact Lift Range

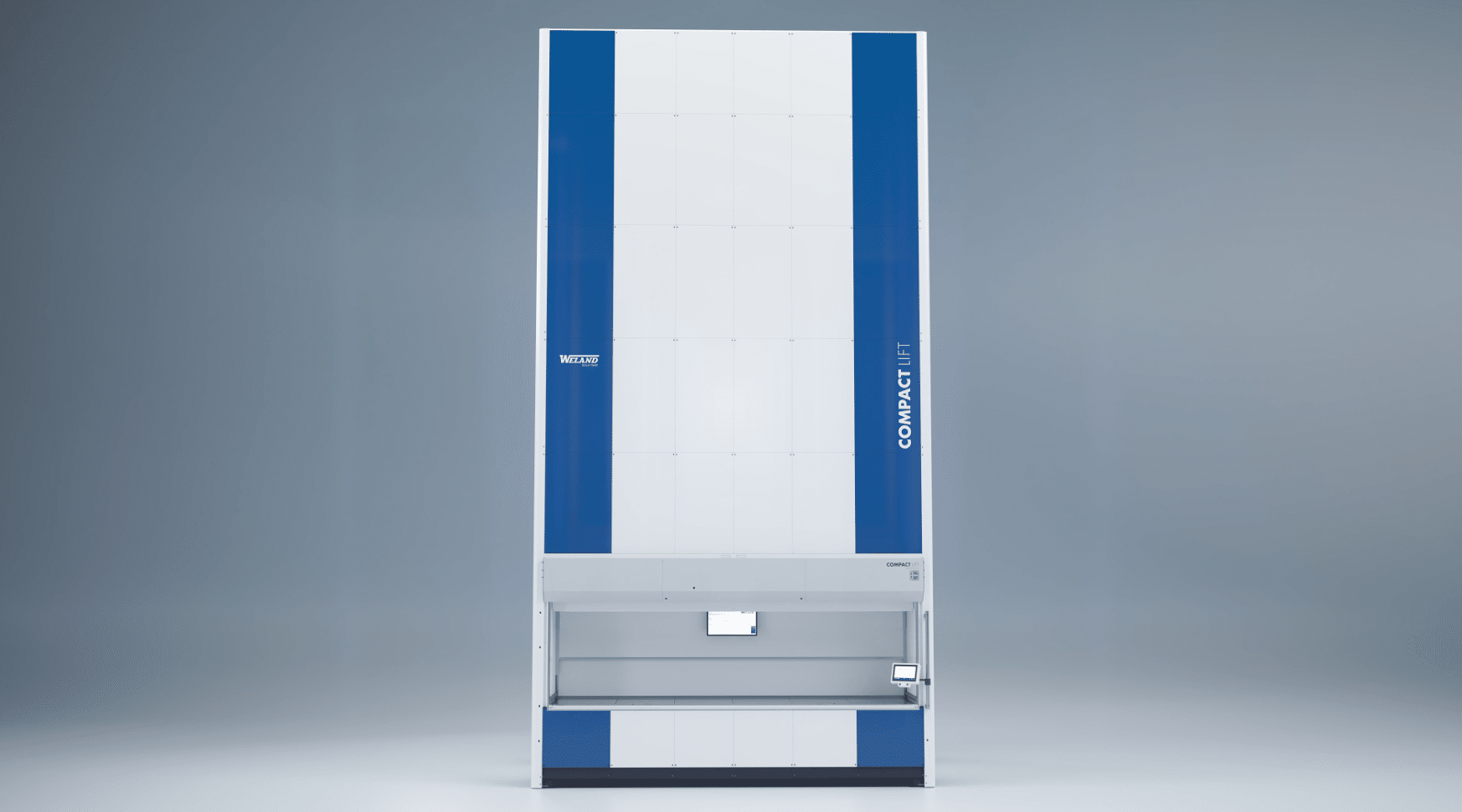

Compact Single
Compact vertical lifts store goods vertically, securely and in a controlled way. Suitable for large volumes of smaller items as well as space-consuming and heavy products — trays handle up to 1,500 kg. A tray is retrieved and presented at the picking position; the whole load tray slides out in the access opening for good ergonomics. The lift is driven by cogwheels on homogeneous gear racks (rack and pinion) for very stable movement and precise tray positioning, with less wear, lower maintenance and high operating reliability.
Compact Single
Large volumes of smaller items or space-consuming, heavy products — trays up to 1,500 kg.
Compact
Twin
Two load trays at once; picking can be more than doubled while the next tray is retrieved in parallel.
Compact
Double
Same family as the Twin, with double load trays in depth for more storage per square metre.
Compact
Carousel
Rotating carousel system for high-speed sequential picking
See It In Action
How Compact Single Works
Key Features
- Single-column layout for minimal floor space
- Large effective trays without posts or end panels that waste storage space
- Automatic measurement of goods height; trays stored with minimum gap for maximum density
- Ergonomic goods-to-person delivery with the full tray at the opening
- LED pick-to-light indicators
- WMS and ERP integration ready
Benefits
Minimal Footprint
Designed so the minimum floor area holds the largest practical storage volume, with standard heights from 3–16 m adapted to your premises.
Fast Retrieval
Rapid tray presentation at a consistent picking height suits workflows with few picks and few items, or many picks with a smaller SKU range.
Easy Installation
Compact footprint and quick installation and commissioning get you productive sooner.
Cost Effective
Lower entry cost than twin or double configurations while still delivering major space and handling gains.
See It In Action
Technical specifications
Maximum load capacity
100,000 kg
Height
3,000–16,000 mm
Width
1,697–6,929 mm
Depth
1,554–4,248 mm
Width, load tray
1,220–6,460 mm
Depth, load tray
350–1,230 mm
Tray divider
25/50 mm
Max. load weight per load tray
300–1,500 kg
Height of goods measurement
In 25 mm intervals
Height of goods measurement (option)
Up to 1,000 mm
Safety curtain for personal protection
Storage optimisation
Weight check
Password protection
Group rights and authorisation
Language selection
Ambient temperature / relative humidity (%RH), no condensation
2–40 °C / 10–85%
Voltage, 3-phase
400 V
Current, AC 50 Hz
25/32 A
