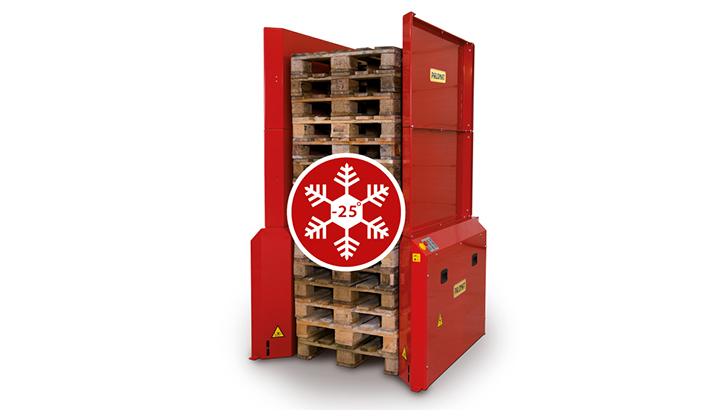

PALOMAT® GREENLINE COLD STORE

Stacking and Destacking of 1 pallet in cold environments

PALOMAT® Greenline Cold Store offers fully automatic stacking and destacking in cold temperatures down to –25°C / –13°F, and it operates completely on AC power.

Choose a PALOMAT® Greenline Cold Store if you plan to both stack and destack single pallets in cold environments and wish to use only electricity as the power source.

The PALOMAT® Greenline Cold Store can handle up to 15 pallets and has a lifting capacity of 500 kg.

How does the PALOMAT® Greenline Cold Store work?

The PALOMAT® Greenline Cold Store is designed for automatic pallet stacking and destacking using a touch-panel interface. It only requires a 230 V power supply.

The user can insert or remove pallets using a stacking truck or fork lift truck at floor level. The PALOMAT® Greenline Cold Store detects the pallets using photo sensors and automatically stacks or destacks them one by one.

When selecting destacking, the PALOMAT® Greenline Cold Store can handle a stack of up to 15, which are then destacked automatically. When selecting stacking, the pallets are inserted one by one and automatically stacked to a maximum of 15.

The touch panel is used to switch between stacking and destacking modes, but otherwise the PALOMAT® Greenline Cold Store operates automatically. The entire stack can then be removed. To prevent condensation on the grippers, we recommend not placing the PALOMAT® Greenline Cold Store near doors or entrances, as drafts can occur in these areas.

The pallet magazine/dispenser is a standard model but can accommodate a wide variety of pallet types and sizes, with custom solutions available for specific customer needs.
